Camera

A monoDrive Camera Sensor can support six different image types:

RGB: A three channel image of the scene
Grayscale: A single channel grayscale image of the scene
Semantic Segmentation: Each object in the scene is semantically labeled by color
Depth camera: Provides a camera array where pixel values represent distance from the camera
Fisheye: Equidistant or Poly1 Fisheye Camera/Scaramuzza model Fisheye camera based.
360 Camera: Provides a 360 view of the scene.

Image output size, intrinsic camera parameters, and various other settings can be controlled through each camera's configuration.

RGB Camera

Provides a RGBA camera stream with optional bounding boxes for dynamic objects in the scene.

{
    "type":"Camera",
    "listen_port":8010,
    "location": {
      "x": 0.0,
      "y": 0.0,
      "z": 250.0
    },
    "rotation": {
      "pitch": 0.0,
      "yaw": 0.0,
      "roll": 0.0
    },
    "stream_dimensions": {
      "x": 512.0,
      "y": 512.0
    },
    "dynamic_range": 50,
    "fov": 60.0,
    "focal_length": 9.0,
    "fstop": 1.4,
    "min_shutter": 0.0005,
    "max_shutter": 0.0014,
    "sensor_size": 9.07,
    "color_filter_array": {
        "use_cfa": false,
        "cfa":"rccc"
    },
    "channels": "bgra",
    "viewport": {
        "enable_viewport": false,
        "fullscreen": false,
            "monitor_name": "",
        "monitor_number": 0,
        "window_offset": {
            "x": 32,
            "y": 32
        },
        "window_size": {
            "x": 0,
            "y": 0
        }
    },
    "ray_tracing_enable": false,
    "annotation": {
      "include_annotation": false,
      "desired_tags": [
        "traffic_sign", "vehicle"
      ],
      "far_plane": 10000.0,
      "include_tags": true,
      "include_obb": false,
      "cull_partial_frame":false,
      "debug_draw":false
    },
    "max_distance":50000.0,
    "channel_depth":1
}

stream_dimensions: The size of the image in pixels
- x: The width of the image in pixels
- y: The height of the image in pixels
dynamic_range: Controls the gain of the camera. A higher value will result in a grainer image.
fov: Controls the horizontal angle of view of the camera. The vertical angle will be dynamically calculated based on stream_dimensions
focal_length: If fov is set to 0, this will be used to emulate the focal length of the lens in millimeters. Used to calculate field-of-view.
fstop: Controls the exposure time of the camera, higher values will yield brighter images with more motion blur.
min_shutter: Lower bound of the camera's exposure time in seconds. Higher values will have more motion blur.
max_shutter: Upper bound of the camera's exposure time in seconds. Higher values will have more motion blur.
sensor_size: If fov is set to 0, this will be used to emulate the size of the camera's image sensor in millimeters. Used to calculate field-of-view.
channels: Used to determine type of image output. For RGB cameras, this should always be rgba.
debug_draw: If true and annotation is true, the bounding boxes will be displayed in the image for annotated objects.
annotation: If true, the annotation information will be provided in the output data.
include_tags: If true, the actor tag information will be included in annotations.
include_obb: If true, the actor oriented bounding box information will be included in annotations.
cull_partial_frame: If true, the actors that are only partially in frame will be removed from annotations.
far_plane: The maximum distance in centimeters to annotate actors in the scene.
desired_tags: If this array is not empty, the only actors with the tags specified here will be included in annotations.
viewport: if enable_viewport is set to true, a new window will open with this camera as a viewport camera. For more information see multi-viewport

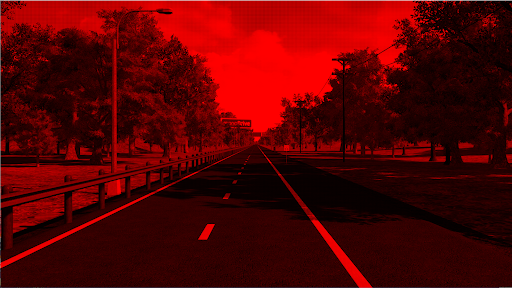

color_filter_array: If use_cfa set to true, enables color filter array. For more information, see color filter array (bayer)

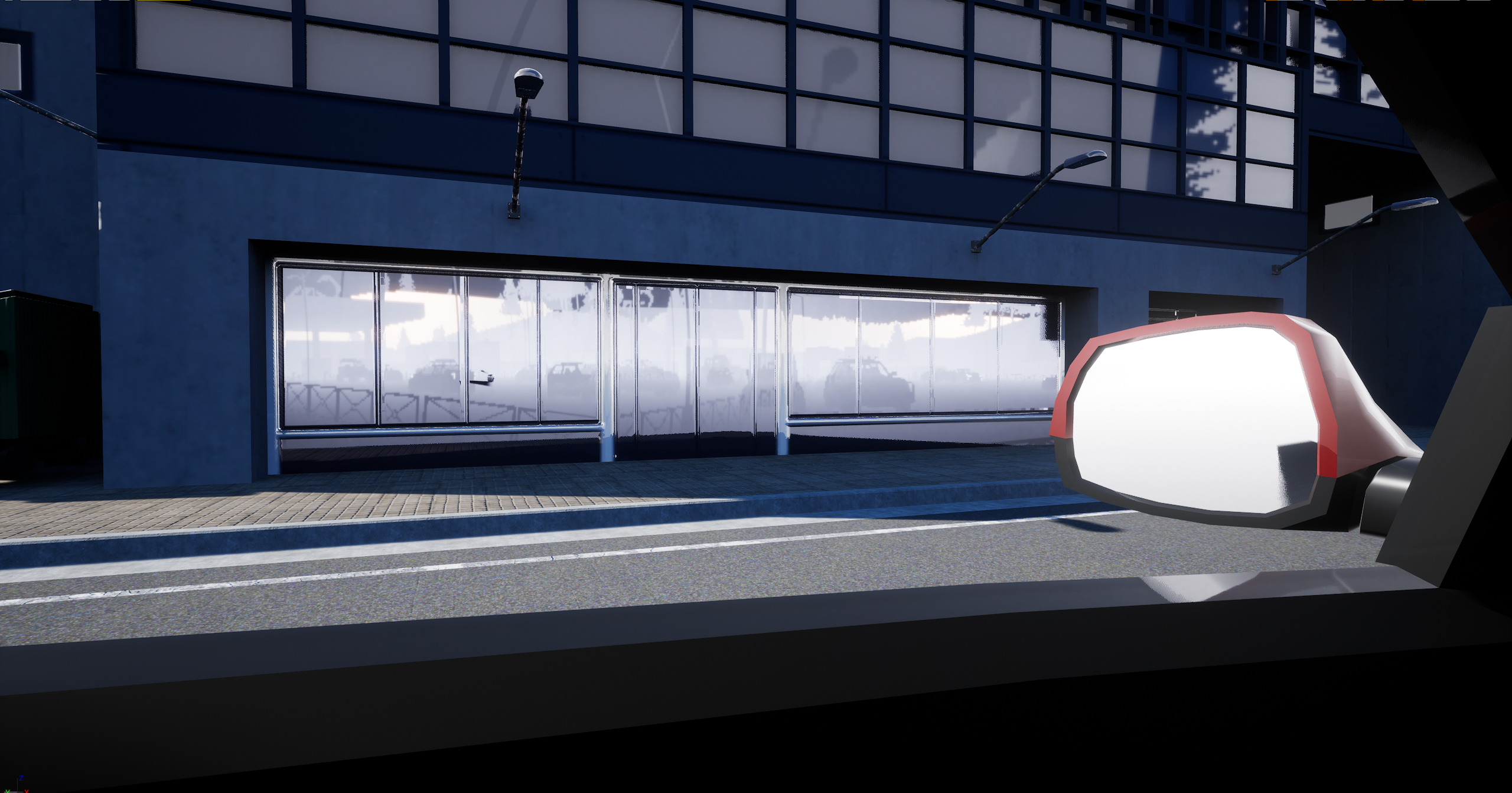

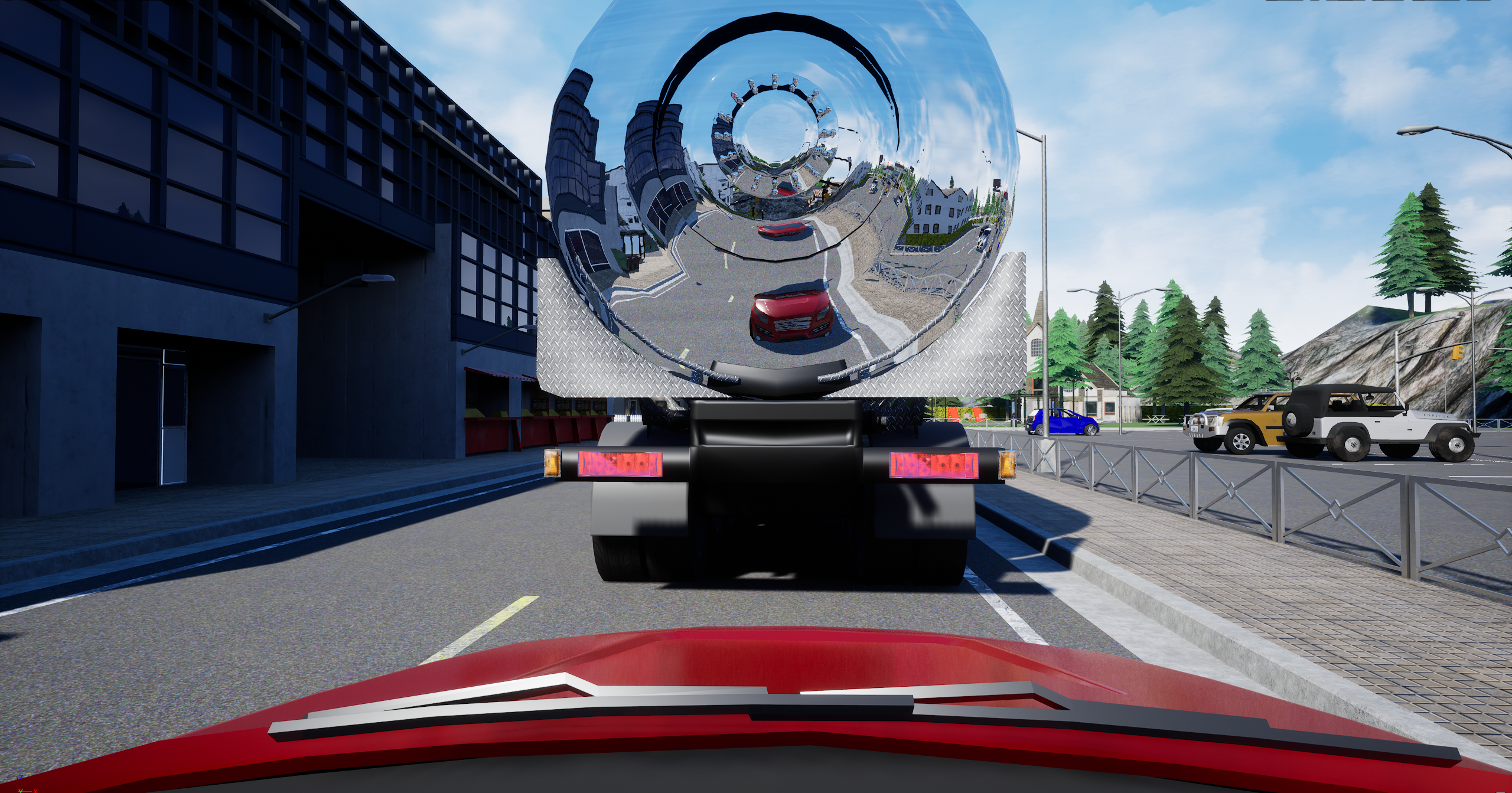

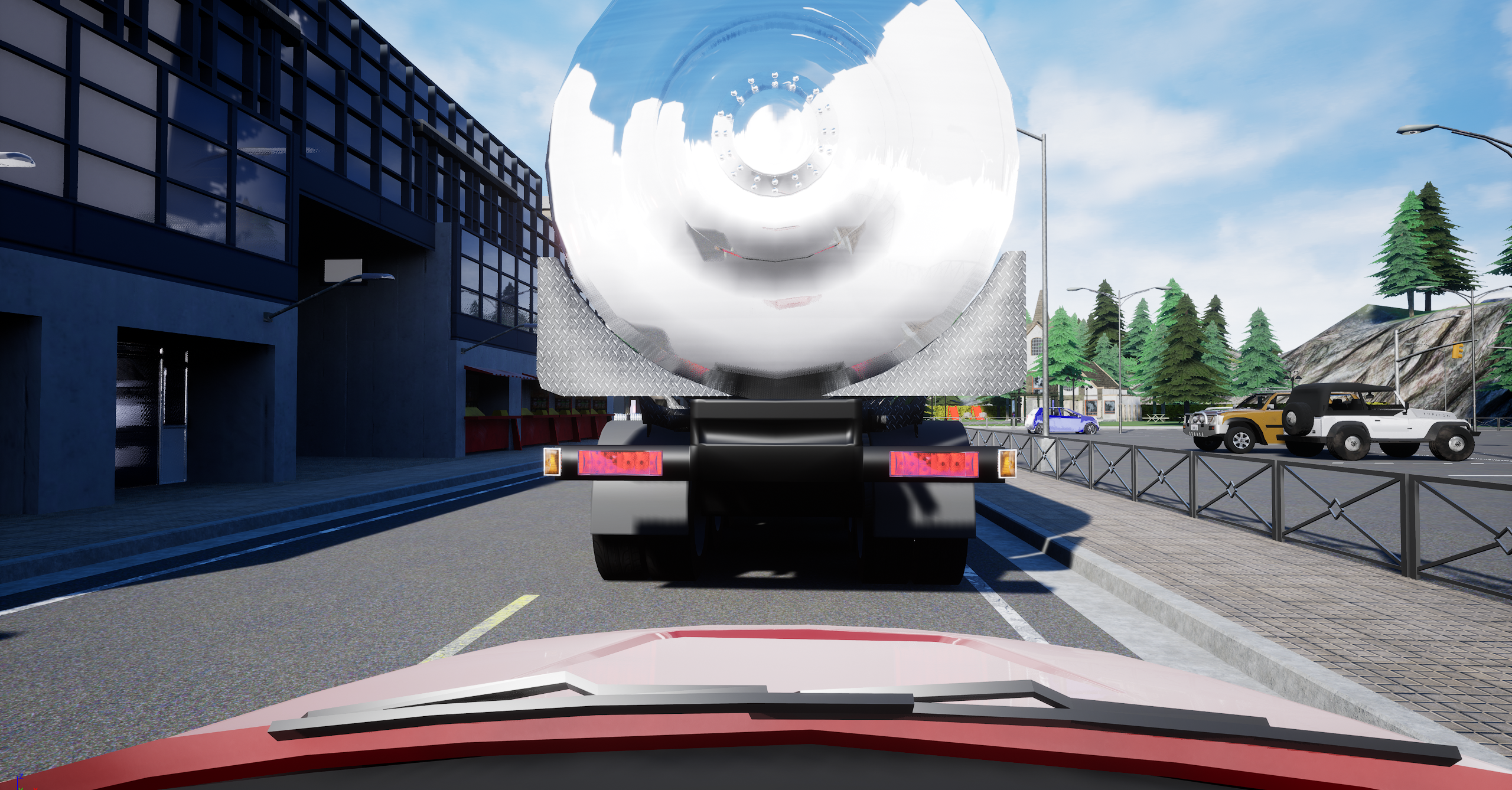

ray_tracing_enable: If set to true, enables ray tracing. For more information, see ray tracing

Grayscale Camera

Provides a grayscale camera stream with optional bounding boxes for dynamic objects in the scene.

 {
    "type": "Camera",
    "listen_port": 8012,
    "location": {
        "x": 0.0,
        "y": 0.0,
        "z": 250.0
    },
    "rotation": {
        "pitch": 0.0,
        "yaw": 0.0,
        "roll": 0.0
    },
    "stream_dimensions": {
        "x": 512.0,
        "y": 512.0
    },
    "dynamic_range":  50,
    "fov": 60.0,
    "focal_length": 9.0,
    "fstop": 1.4,
    "min_shutter":  0.000500,
    "max_shutter":  0.001400,
    "sensor_size":  9.07,
   "channels" : "gray",
   "annotation": {
      "include_annotation": false,
      "desired_tags": [
        "traffic_sign", "vehicle"
      ],
      "far_plane": 10000.0,
      "include_tags": true,
      "include_obb": false,
      "cull_partial_frame":false,
      "debug_draw":false
    },
    "max_distance":50000.0,
    "channel_depth":1
}

All values are the same as the RGB camera except:

channels: Used to determine the type of image output. For grayscale cameras, this should always be gray.

Semantic Camera

Provides a grayscale camera stream where pixel values represent the semantic category of the rendered actor.

 {
     "type": "SemanticCamera",
     "listen_port": 8013,
     "location": {
       "x": 0.0,
       "y": 0.0,
       "z": 250.0
     },
     "rotation": {
       "pitch": 0.0,
       "yaw": 0.0,
       "roll": 0.0
     },
     "stream_dimensions": {
       "x": 512.0,
       "y": 512.0
     },
    "dynamic_range":  50,
    "fov": 60.0,
    "focal_length": 9.0,
    "fstop": 1.4,
    "min_shutter":  0.000500,
    "max_shutter":  0.001400,
    "sensor_size":  9.07,
    "channels" : "gray",
    "annotation": {
      "include_annotation": false,
      "desired_tags": [
        "traffic_sign", "vehicle"
      ],
      "far_plane": 10000.0,
      "include_tags": true,
      "include_obb": false,
      "cull_partial_frame":false,
      "debug_draw":false
    },
    "max_distance":50000.0,
    "channel_depth": 1
 }

The configuration values are the same as RGB. The following table shows the semantic definition for each pixel value:

Asset	Grayscale Pixel Value
ego vehicle	2
car	3
motorcycle	4
bus	6
truck	8
fence/guardrail	5
traffic light	10
person	11
bicycle	12
building (shipping containers)	15
traffic signs	20
lane markers	70
terrain	80
foliage	85
gravel	100
power lines	110
pylons	115
sky	141
street light/pole	153
road	175
sidewalk	190
road art	193

Depth Camera

Provides an unsigned 32-bit floating point array where the pixel values represent the distance from the camera in centimeters.

{
     "type": "DepthCamera",
      "listen_port": 8014,
      "location": {
       "x": 0.0,
       "y": 0.0,
       "z": 250.0
     },
     "rotation": {
       "pitch": 0.0,
       "yaw": 0.0,
       "roll": 0.0
     },
     "stream_dimensions": {
       "x": 512.0,
       "y": 512.0
     },
    "dynamic_range":  50,
    "fov": 60.0,
    "focal_length": 9.0,
    "fstop": 1.4,
    "min_shutter":  0.000500,
    "max_shutter":  0.001400,
    "sensor_size":  9.07,
     "annotation": {
      "include_annotation": false,
      "desired_tags": [
        "traffic_sign", "vehicle"
      ],
      "far_plane": 10000.0,
      "include_tags": true,
      "include_obb": false,
      "cull_partial_frame":false,
      "debug_draw":false
    },
    "max_distance":50000.0,
    "channels":"gray",
    "channel_depth":4
 }

These configuration values are the same as the RGB camera. Note that the output format of the image is an array the same size as stream_dimensions containing 32-bit floating point numbers representing depth in centimeters.

Fisheye and Wide Angle Camera

Scaramuzza based Fisheye Camera

The fisheye lens model was expanded to include the Poly1FisheyeCamera model. This model is defined by a polynomial (Scaramuzza’s model a0, a2, a3, a4) which describes the projection onto the image sensor. The model can generically describe any camera lens projection but is best used for difficult models such as fisheye and ultra wide angle lenses. The polynomial parameters can be calibrated automatically from a chessboard dataset using mathwork’s toolbox.

{
    "type": "Poly1FisheyeCamera",
    "listen_port": 8100,
    "description": "",
    "location": {
        "x": 0.0,
        "y": 0.0,
        "z": 225.0
    },
    "stream_dimensions": {
        "x": 512,
        "y": 512
    },
    "rotation": {
        "pitch": 0.0,
        "roll": 0.0,
        "yaw": 0.0
    },
    "viewport": {
        "enable_viewport": false,
        "fullscreen": false,
        "monitor_name": "",
        "monitor_number": 0,
        "window_offset": {
            "x": 0,
            "y": 0
        },
        "window_size": {
            "x": 0,
            "y": 0
        }
    },
    "a0": 350.0,
    "a2": -0.001,
    "a3": 1.2e-06,
    "a4": -1.5e-09,
    "channel_depth": 1,
    "channels": "bgra",
    "dynamic_range": 50.0,
    "enable_streaming": true,
    "face_size": 492,
    "focal_length": 9.0,
    "fov": 180.0,
    "fstop": 1.399999976158142,
    "max_distance": 50000.0,
    "max_shutter": 0.00139999995008111,
    "min_shutter": 0.0005000000237487257,
    "sensor_size": 9.069999694824219,
    "wait_for_fresh_frame": true,
    "annotation": {
        "cull_partial_frame": false,
        "debug_draw": false,
        "desired_tags": [],
        "far_plane": 10000.0,
        "include_annotation": false,
        "include_obb": false,
        "include_tags": false
    }
}

Equidistant Fisheye Camera

{
    "type": "EquidistantFisheyeCamera",
    "listen_port": 8100,
    "description": "",
    "location": {
        "x": 0.0,
        "y": 0.0,
        "z": 225.0
    },
    "rotation": {
        "pitch": 0.0,
        "roll": 0.0,
        "yaw": 0.0
    },
    "stream_dimensions": {
        "x": 512,
        "y": 512
    },
    "annotation": {
        "cull_partial_frame": false,
        "debug_draw": false,
        "desired_tags": [],
        "far_plane": 10000.0,
        "include_annotation": false,
        "include_obb": false,
        "include_tags": false
    },
    "channel_depth": 1,
    "channels": "bgra",
    "dynamic_range": 50.0,
    "enable_streaming": true,
    "face_size": 1024,
    "fisheye_pixel_diameter": 512,
    "focal_length": 9.0,
    "fov": 180.0,
    "fstop": 1.399999976158142,
    "max_distance": 50000.0,
    "max_shutter": 0.00139999995008111,
    "min_shutter": 0.0005000000237487257,
    "sensor_size": 9.069999694824219,
    "viewport": {
        "enable_viewport": false,
        "fullscreen": false,
         "monitor_name": "",
        "monitor_number": 0,
         "window_offset": {
            "x": 0,
            "y": 0
        },
        "window_size": {
            "x": 0,
            "y": 0
        }
    },
    "vignette_bias": 0.5,
    "vignette_radius_start": 0.949999988079071,
    "wait_for_fresh_frame": true
}

The configuration for a Equidistant Fisheye Camera requires some additional settings.

vignette_bias: Before the hard mechanical vignette at what point should the fade start normalized with respect to the diameter of the fisheye.
vignette_radius_start: in the transition to black at the start of the mechanical vignette start with this value of black before the linear fade.
fisheye_pixel_diameter: To obtain a bounded fisheye set the pixel diameter to the smallest axis, or to the measured real pixel diameter limit from the image. To obtain a diagonal bounded fisheye set the pixel diameter to the hypotenuse of the image. To obtain a fisheye that is greater than the image plane use the value from your model
face_size: Increasing this number improves image quality and vice versa with diminishing returns with respect to the image resolution. face_size should be smaller than the largest resolution.

360 Camera

Provides a 360 view of the scene.

{
    "type":"Camera360",
    "listen_port":8017,
    "location": {
      "x": 0.0,
      "y": 0.0,
      "z": 250.0
    },
    "rotation": {
      "pitch": 0.0,
      "yaw":  0.0,
      "roll": 0.0
    },
    "stream_dimensions": {
      "x": 512.0,
      "y": 512.0
    },
    "face_size": 512,
    "fov": 180.0,
    "viewport": {
        "enable_viewport": false,
        "fullscreen": false,
            "monitor_name": "",
        "monitor_number": 0,
        "window_offset": {
            "x": 32,
            "y": 32
        },
        "window_size": {
            "x": 0,
            "y": 0
        }
    }
}

Raw Output

The total sensor output will be 12 bytes for the monoDrive sensor header plus the total number of bytes for the image defined as:

  Stream Dimension Width (x)  *  Stream Dimension Height (y)  *  4

for RGB images and

  Stream Dimension Width (x)  *  Stream Dimension Height (y)

for grayscale images. See the "Depth Camera" description for information about the output format for this sensor.

Annotation

{
    "actors": [{
            "2d_bounding_boxes": [{
                "2d_bounding_box": [
                    158.12020874023438,
                    191.5050811767578,
                    261.953125,
                    272.0334167480469
                ],
                "name": "Body"
            }],
            "name": "sedan_monoDrive_02_HD4_128",
            "oriented_bounding_box": [{
                "center": [
                    7072.78662109375,
                    -1290.6829833984375,
                    -172.56475830078125
                ],
                "extents": [
                    509.5,
                    184.18313598632812,
                    148.64846801757812
                ],
                "name": "Body",
                "orientation": [
                    -2.768632839433849e-06,
                    -0.00046827553887851536,
                    -0.9241809248924255,
                    0.381954550743103
                ],
                "scale": [
                    1.0,
                    1.0,
                    1.0
                ]
            }],
            "tags": [
                "vehicle",
                "static",
                "car"
            ]
        },
        {
            "2d_bounding_boxes": [{
                "2d_bounding_box": [
                    189.89840698242188,
                    203.3860321044922,
                    260.5026550292969,
                    267.6765441894531
                ],
                "name": "Body"
            }],
            "name": "subcompact_monoDrive_01_HD_32",
            "oriented_bounding_box": [{
                "center": [
                    9515.275390625,
                    -1273.10546875,
                    -172.4475555419922
                ],
                "extents": [
                    253.14500427246094,
                    144.71368408203125,
                    148.70858764648438
                ],
                "name": "Body",
                "orientation": [
                    8.400806109420955e-06,
                    -0.0004682083672378212,
                    -0.9330278635025024,
                    0.3598036468029022
                ],
                "scale": [
                    1.0,
                    1.0,
                    1.0
                ]
            }],
            "tags": [
                "vehicle",
                "static",
                "car"
            ]
        }
    ],
    "lanes": [{
        "center": [{
            "x": 255.92514038085938,
            "y": 477.407958984375
        }, {
            "x": 255.9377899169922,
            "y": 440.50653076171875
        }],
        "left": [{
            "x": 109.17768859863281,
            "y": 477.3799743652344
        }, {
            "x": 133.64822387695313,
            "y": 440.4832458496094
        }],
        "right": [{
            "x": 402.6728515625,
            "y": 477.435791015625
        }, {
            "x": 378.22747802734375,
            "y": 440.52972412109375
        }],
        "road_id": 0,
        "lane_id": 3,
        "s": 5162.6796875,
        "offset": 0
    }]
}

Annotation data comes in an additional JSON message on the same port as the camera image data. Each element in the JSON array represents a single annotation for a dynamic actor.

actors: Array JSON objects that decribe the actors on the camera frame
- 2d_bounding_boxes: Array of JSON bounding boxes for an actor
  - 2d_bounding_box: Array containing the top-left x, top-left y, bottom-right x, bottom-right y coordinates in the image plane for the bounding box of this actor's section
  - name: The name of the actor's section this bounding box surrounds
- name: The name of the actor for these bounding boxes
- oriented_bounding_box: An array containing JSON for each 3D bounding box for the actor's sections
  - center: The x, y, and z center of the bounding box in centimeters with respect to the camera.
  - extents: The x, y, and z radius in centimeters from the center of the bounding box
  - name: The name of the actor's section this bounding box surrounds
  - orientation: The rotation of the bounding box about the center as a quaternion
  - scale: The scale coefficients for this bounding box
- tags: An array of tags assigned to this actor
lanes: Array JSON objects that decribe the lanes on the camera frame
- road_id: opendrive spec road id, can be used to lookup this lane in the opendrive map.
- lane_id: opendrive lane id, can be be used to identify this lane in the opendrive map.
- s: distance along opendrive lane spline.
- offset: an array of (x,y) points in image space for the left lane marking.
- left: an array of (x,y) points in image space for the left lane marking.
- right: an array of (x,y) points in image space for the right lane marking.
- center an array of (x,y) points in image space for the lane center.

Camera Coordinate Reference System

A Camera's coordinate reference system is used in relation to Unreal Engine.

Color Filter Arrays (Bayer)

Real cameras generate RAW images before demosaicing (debayering) into RGB. The monoDrive simulator is able to generate RAW images with any red, green, blue, and clear 2x2 filter pattern at runtime in the monoDrive client API. The demosaicing process on real cameras introduces several different artifacts that your perception system has been trained with and from real camera images.

To enable color filter, set use_cfa to true, and select a cfa type such as "rccc" or any combination of r, g, b, or c.

     "color_filter_array": {
          "use_cfa": true,
          "cfa":"rccc"
    }

Camera as a Viewport Camera

Starting from release 1.12, the user can configure a viewport on any standard, fisheye, or 360 camera. This will open an additional window on the simulation machine to directly display the stream of camera data.

"viewport": {
      "enable_viewport": true,
      "monitor_name": "",
      "monitor_number": 0,
      "fullscreen": false,
      "window_offset": {
        "x": 256.0,
        "y": 256.0
      }
}

More information can be found on Multi-Viewport Page

Real-Time Ray Tracing Tuning

The maps available out of the box in monoDrive have been better tuned for Real-Time Ray Tracing. Real-Time Ray Tracing allows for accurate real-time reflections, better dynamic shadows, and ambient occlusion at the cost of frame rate on lower end machines. The primary viewport also defaults to ray tracing disabled but can be enabled by selecting the post processing volume in the map of interest and turning on ray traced ambient occlusion and ray traced reflections.

For better performance, the camera sensors default to ray_tracing_enable: false, but ray_tracing_enable: true can be set or added in the configuration at runtime to enable real time ray tracing.
